Plastic Levels

Showing all 6 results

  • 2-37005

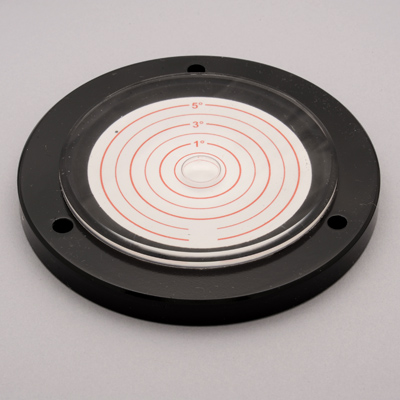

    2-37005

    Large diameter, circular level constructed of high quality plastic component parts which have been machined to maintain precison and accuracy. Units are completely waterproof and ideal for construction equipment and other outdoor applications.

    Sensitivity: One (1) degree per division
    Range: Five (5) degrees

    Size: 100.0mm OD x 14.5mm H with three (30 mounting holes equally spaced on a 85.0mm bolt circle

    To check availability email info@geier-bluhm.com



    Out of stock

    Total: $24.00
  • 4-1501

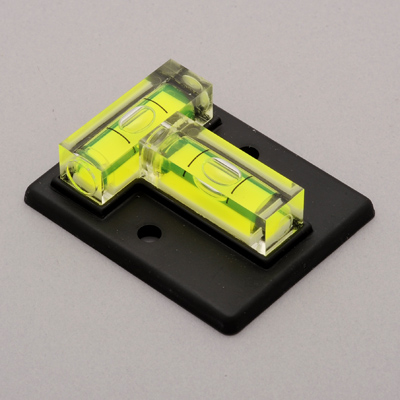

    4-1501

    Drawing Available

    Type of Mounting: Horizontal
    Length: 49.5mm
    Width: 39.7mm
    Height: 13.0mm
    Housing Material: Acrylic
    Housing Finish: None
    Vial Material: Plastic
    Sensitivity (Nominal): 40 minutes per 2mm
    Fluid Color: Yellow-green
    Mounting Hole Size: 4.2mm
    Center to Center: 25.8mm

    Total: $7.16

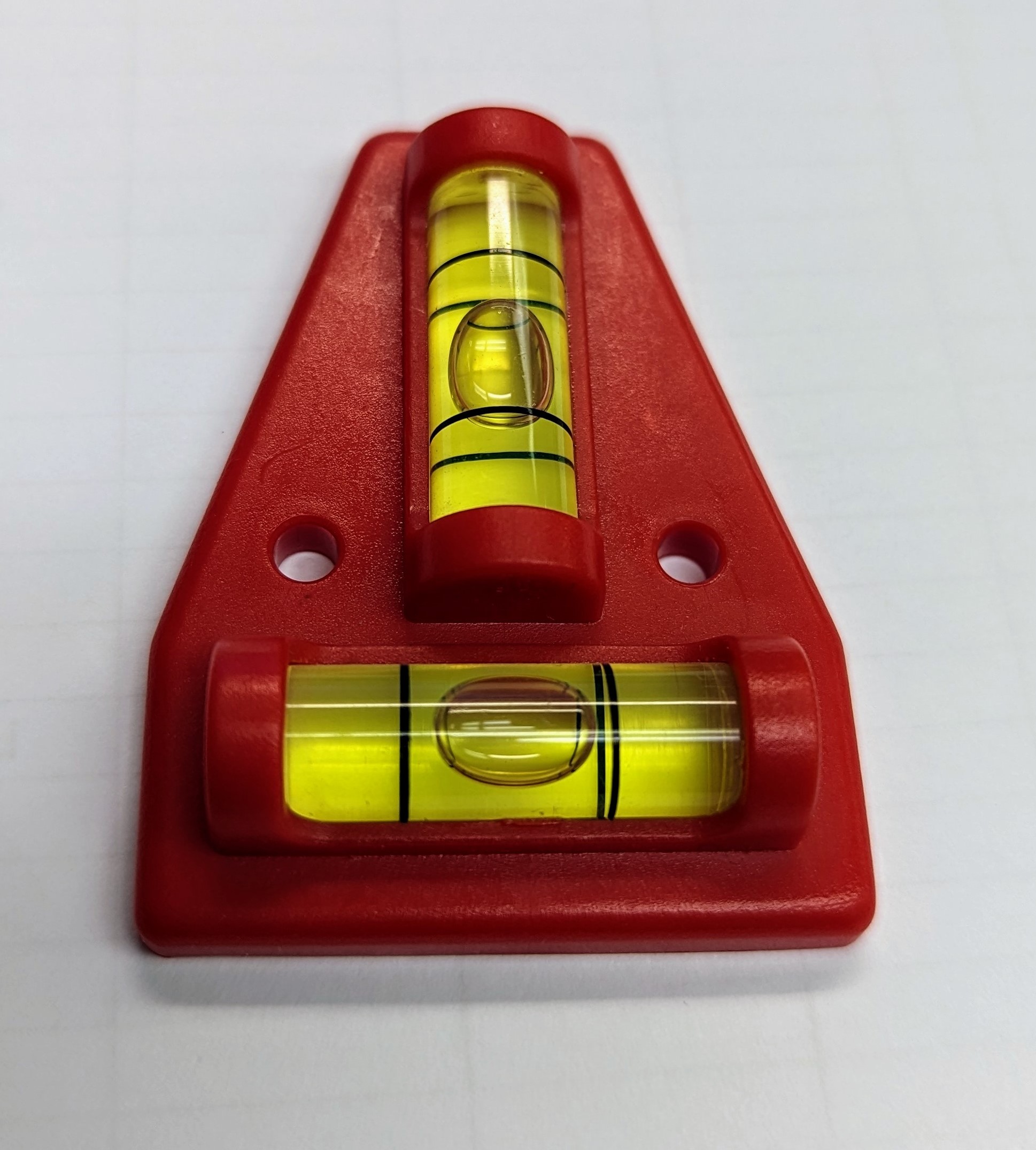

  • 4-1506

    Drawing Available

    Type of Mounting: Horizontal
    Length: 66mm
    Width: 44.8mm
    Height: 13.0mm
    Housing Material: Acrylic
    Housing Finish: Orange
    Vial Material: Plastic
    Sensitivity (Nominal): 40 minutes per 2mm
    Fluid Color: Yellow-green
    Mounting Hole Size: 4.2mm
    Center to Center: 25mm

    Total: $4.50
  • 4-2506

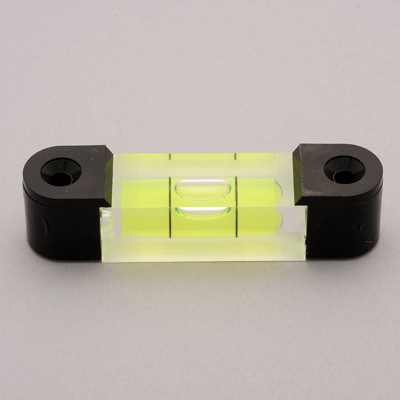

    4-2506

    Type of Mounting: Horizontal
    Length: 70.0mm
    Width: 15.0mm
    Height: 17.5mm
    Housing Material: Acrylic
    Housing Finish: None
    Vial Material: Plastic
    Sensitivity (Nominal): 35 minutes per 2mm
    Fluid Color: Yellow-green
    Mounting Hole Size: 4.2mm
    Center to Center: 55.0mm

    Total: $4.01
  • 4-2511

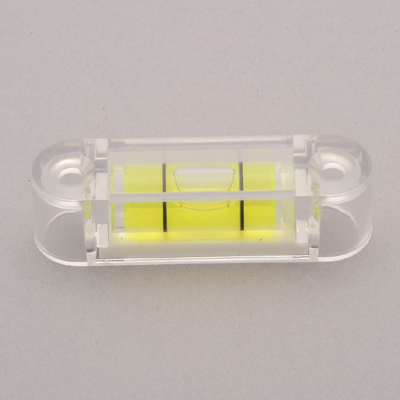

    4-2511

    Drawing Available

    Type of Mounting: Horizontal
    Length: 56.0mm
    Width: 15.0mm
    Height: 15.0mm
    Housing Material: Acrylic
    Housing Finish: None
    Vial Material: Plastic
    Sensitivity: 35 minutes per 2mm
    Fluid Color: Yellow-green
    Mounting Hole Size: 4.2mm
    Center to Center: 42.5mm

    Total: $3.18
  • 4-3500

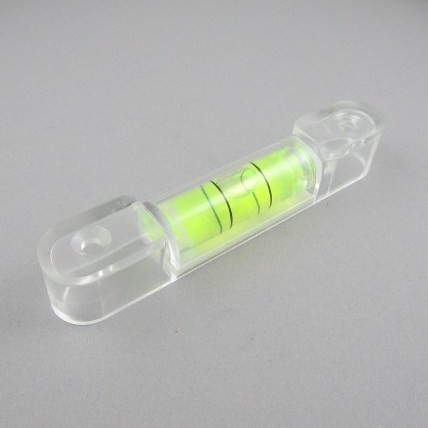

    4-3500

    Drawing Available

    Type of Mounting: Horizontal
    Length: 98.0mm
    Width: 16.0mm
    Height: 16.0mm
    Housing Material: Acrylic
    Housing Finish: None
    Vial Material: Plastic
    Sensitivity: 35 minutes per 2mm
    Fluid Color: Yellow-green
    Mounting Hole Size: 4.2mm
    Center to Center: 75.7mm

    Total: $3.44
