Showing 10–18 of 125 results

  • 4-3052

    4-3052

    Drawing Available

    Small machinist-type level with rotating cover. The precision ground vial is mounted in a brass case with a black enamel finish.
    Sensitivity: 90 seconds per division (2 mm)
    Size: 3.12 inch x .56 inch diameter with two (2) .152 inch diameter mounting holes located 2.970 inch C to C

    Total: $141.90
  • 4-3080

    4-3080

    Drawing Available

    Small mounted tubular level with highly precison ground vial mounted in a brass case with black finish.
    Sensitivity: 10 seconds per division (2mm)
    Size: 3.75 inch x .625 inch diameter with two (2) .228 inch mounting holes located 3.250 inch C to C

    Total: $139.40
  • 2-15503

    2-15503

    CIRCULAR LEVEL
    NSN: 5210-01-174-9223
    IAW U.S. Army Electronics Command, Dwg. SM-A-802914, Rev C
    Unit has a vial with a sensitivity of 20 minute per 1/16th movement of the bubble, and is mounted in a Naval Brass Case and military green finish. This level is not calibrated into the level position and is supplied with a beryllium copper mounting spring for adjustment purposes. Unit is waterproofed and has a hole through the bottom for a light passage. Geier & Bluhm is listed as a suggested source of supply

    Total: $132.65
  • 4-2003

    4-2135

    Drawing Available

    Rugged plate level using anodized aluminum case with black finish.
    Sensitivity: 180 Seconds per division
    Size: 2.93 inch x .56 inch x .56 inch height with two (2) mounting holes .156 inch diameter located 2.56 inch C to C

    22 in stock

    Total: $130.26

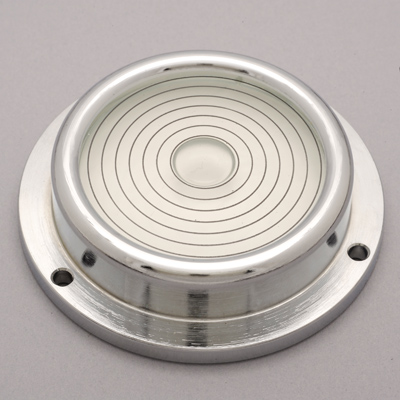

  • 2-24022

    2-24022

    Drawing Available

    Weight 0.35 lbs / 5.6 oz / 158.759 g
    Diameter

    2.750" (69.9mm)
    Fluid

    Clear
    Configuration

    Sensitivity: 10 min/Division, Six (6) Concentric Circles
    Case Material

    Brass
    Case Finish

    Chrome Plate
    Total: $127.45
  • 2-24024

    2-24024

    INDICATOR, LEVEL
    NSN: 5210-01-10-6153, 5220-01-106-6153, 6688-01-106-6153
    IAW U.S Army Tank-Automotive Command Dwg. 12297933, Rev A
    Chrome plated brass case with three (3) mounting holes, and the unit is waterproof. Glass vial has a .688 black centering circle, with two (2) additional circles, 1.125” (Blue), indicating 5 (five) degrees out of level, and 1.562” (Red) at 10 (ten) degrees. Geier & Bluhm is listed as an approved source supply.

    Total: $125.84
  • 2-24016

    2-24016

    Drawing Available

    Weight 0.35 lbs / 5.6 oz / 158.759 g
    Diameter

    2.750" (69.9mm)
    Fluid

    Clear
    Configuration

    Six (6) Concentric Circles
    Case Material

    Brass
    Case Finish

    Chrome Plate
    Sensitivity

    30 min/.1" (24min/2mm)
    Total: $121.24
  • 2-20011

    2-20011

    Drawing Available

    Weight 0.25 lbs / 4 oz / 113.399 g
    Diameter

    2.250" (57.2mm)
    Fluid

    Clear
    Configuration

    Crosslines
    Case Material

    Brass
    Case Finish

    Chrome Plate
    Total: $120.67
  • 2-20000

    2-20000

    Drawing Available

    Weight 0.25 lbs / 4 oz / 113.399 g
    Diameter

    2.250" (57.2mm)
    Sensitivity

    10 min/.1" (8min/2mm)
    Fluid

    Clear
    Configuration

    One Circle
    Case Material

    Brass
    Case Finish

    Chrome Plate
    Total: $119.73
