Level Selector

Showing 1–9 of 125 results

  • 4-6010

    4-6010

    Drawing Available

    High precision mounted tubular level used on fine instruments and special machinery. The ground tubular vial has a sensitivity of 4 to 6 seconds per division (2 mm) equivalent to a rise of .0003 inches per foot. The brass case has an instrument black finish with special mounting lugs at each end. One (1) mounting hole is .375 inch diameter and the other elongated for adjustment purposes, located 5.812 inch C to C.
    Size: 6.37 inch x .81 inch diameter

    Total: $324.19
  • 6-4000

    6-4000

    General purpose, high quality, Machinists’ level with a precision ground vial, 4.00 inch base, and rotating cover to protect the vial when not in use. Base features a groove running the entire length for use on a machine shaft or piping.
    Sensitivity: 240 seconds per division (2.0mm) or equal to a rise in elevation of .015 inch per foot

    Call for price and availability.

    Total: $284.65
  • 4-2012

    4-2012

    Drawing Available

    Adjustable plate level with base, fulcrum, nuts and studs. The precision ground vial is mounted in a brass case with instrument black finish.
    Sensitivity: 2 to 4 minutes per division (.060 inch). Overall size: 2.75 inch L x .50 inch W x .75 inch H. Two (2) additional mounting holes in base plate .120 inch diameter located 2.375 inch C to C.

    Total: $200.21

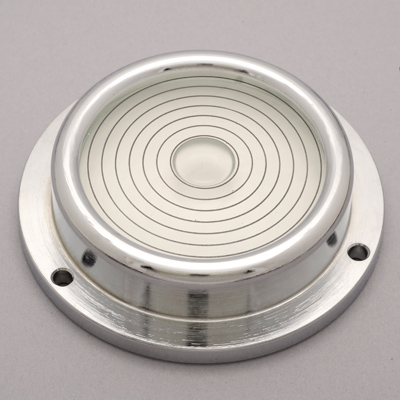

  • 2-24049

    2-24049

    Drawing Available

    Weight 0.35 lbs / 5.6 oz / 158.759 g
    Diameter

    2.750" (69.9mm)
    Fluid

    Clear
    Configuration

    Six (6) Concentric Circles
    Case Material

    Brass
    Case Finish

    Chrome Plate
    Sensitivity

    1 Minute (60 Seconds) per division (0.1″)
    Total: $164.43
  • 2-24008

    2-24008

    LEVEL,SPIRIT, ROUND
    NSN: 1440-00-734-5344, 5210-00-734-5344
    IAW Dept of the Army, Army Missile Command, Redstone Arsenal, Alabama, Dwg. 9194158, Rev B
    Mounted in a special brass case with Nickel-Phosphorous Finish, vial has a sensitivity of 20 minutes per .1” movement of the bubble. Unit has luminescent material applied to the background of the vial and is completely waterproof.

    Total: $164.18
  • 2-24033

    2-24033

    LEVEL, CIRCULAR
    NSN: 5210-01-095-3078, 5210-01-180-8651
    IAW U.S. Army Tank-Automotive Command Dwg. 11669861, Rev B
    Chrome plate brass case with three (3) mounting holes. Glass vial has a .625” inner circle with five (5) additional circles spaced at .100” increments, filled with Isopropyl alcohol. Basic sensitivity is 1 (one) degree or 60 minutes per division with a range of 5 (five) degrees.
    Geier & Bluhm is listed as an approved source supply.

    Total: $160.45
  • 4-3064-20

    4-3064-20

    Drawing Available

    Highly sensitive mounted tubular level with adjusting studs, nuts, fulcrum and base with instrument black finish. Sensitivity: 20 seconds per division (2.0mm). Overall size: 3.00 inch L x 1.25 inch W x 1.25 inch H. Reference drawing for other dimensions and position of three (3) mounting holes.

    Total: $158.16

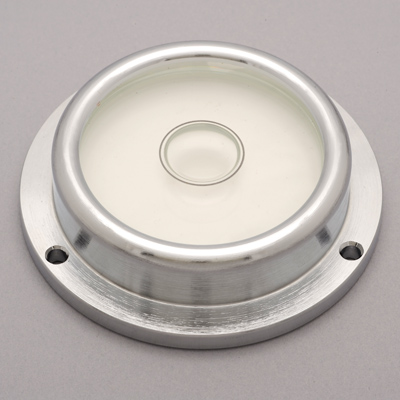

  • 2-24034

    2-24034

    Drawing Available

    Weight 0.35 lbs / 5.6 oz / 158.759 g
    Diameter

    2.750" (69.9mm)
    Sensitivity

    1 Minute (60 seconds) per 0.1″
    Fluid

    Clear
    Configuration

    One Circle
    Case Material

    Brass
    Case Finish

    Chrome Plate
    Total: $156.02
  • 4-4001

    4-4001

    Drawing Available

    Machinist-type level for direct attachment to instruments and equipment. The precision ground vial is encased in a chrome-plated mount and protected by a rotating cover.
    Sensitivity: 120 seconds per division (. 1″)
    Size: 4.81 inch x .62 inch diameter with two (2) .196 inch diameter mounting holes 4.312 inch C to C

    Total: $149.10
